Well i finally finished the mill work for the XS1100 chain conversion, now i have to order new bearings and a sprocket. Then setup a swingarm and rear wheel so i can figure out spacers...

XS1100 Chain Conversion XS11000412

XS1100 Chain Conversion XS11000413

XS1100 Chain Conversion XS11000415

XS1100 Chain Conversion XS11000416

XS1100 Chain Conversion XS11000417

XS1100 Chain Conversion XS110004110

XS1100 Chain Conversion XS11000419
Back to top Go down
motohorseman
Admin
motohorseman

Posts : 353
Join date : 2011-02-27

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeTue Mar 15, 2011 5:55 am

Looking really REALLY good there Smoke!

What was the final look you are going after? A Yamaha Kenny Roberts version of the Kawasaki Eddie Lawson Replica's (and the ZRX series)???
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeTue Mar 15, 2011 11:22 am

motohorseman wrote:
Looking really REALLY good there Smoke!

What was the final look you are going after? A Yamaha Kenny Roberts version of the Kawasaki Eddie Lawson Replica's (and the ZRX series)???

The plan is to find a subframe with a tail section that has the same lines as the tank. Im going to try and use R6 parts to keep it all Yamaha but i want to use a swingarm & wheel that takes a 200 tire, not sure if yamaha has something that big. If not i'll try to get a BKing swingarm and wheel off of ebay...
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeTue Mar 15, 2011 11:30 am

DJ wrote:
I use to roll it on about half way in low gear then turn it on and it would pull the wheel, no clutching to get it up. When it came down I would hit 2nd and it would pull it up again.

The XS-11 had about 83 hp at the back wheel of the first year Yamaha, they went down from there. :face:

With the use of an aluminum subframe, swingarm, lighter wheels and the absence of the heavy drive shaft, she should be really prone to wheelies!!!
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Mar 17, 2011 10:50 am

Fatfatboy wrote:
Dang,,You go boyeee!! I want a millin machine....Your my idol, Smoke.Smile

You know your company could benefit from a mill & lathe... :twisted:
Back to top Go down
motohorseman
Admin
motohorseman

Posts : 353
Join date : 2011-02-27

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeFri Mar 18, 2011 5:27 am

Smoke-Dog wrote:
Fatfatboy wrote:
Dang,,You go boyeee!! I want a millin machine....Your my idol, Smoke.Smile

You know your company could benefit from a mill & lathe... :twisted:

Sounds like a legitimate business expense to me -

And I think we even know an operator!
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Apr 07, 2011 11:43 am

The swingarm i chose for the project (00-03 GSXR750) was laying on my door step last night. I'll make some measurements and see if i can't make her fit this weekend...

XS1100 Chain Conversion XS1100001

XS1100 Chain Conversion XS1100002
Back to top Go down
motohorseman
Admin
motohorseman

Posts : 353
Join date : 2011-02-27

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Apr 07, 2011 7:03 pm

That is a great looking swingarm!

Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeSat Apr 23, 2011 1:09 am

Ok, my rear wheel, axle and caliper showed up this week so off i go to the bat cave!!!

XS1100 Chain Conversion XS1100026

XS1100 Chain Conversion XS1100019
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeSat Apr 23, 2011 1:14 am

Got the swingarm mounted and the rear wheel set in place to get a visual...

XS1100 Chain Conversion XS1100018

XS1100 Chain Conversion XS1100010

XS1100 Chain Conversion XS1100011

XS1100 Chain Conversion XS1100014

XS1100 Chain Conversion XS1100013

XS1100 Chain Conversion XS1100015

XS1100 Chain Conversion XS1100012

XS1100 Chain Conversion XS1100017
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeSat Apr 23, 2011 1:16 am

Next i need to hunt down the front/rear sprockets and make some spacers for the swingarm axle...
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeMon May 09, 2011 1:31 am

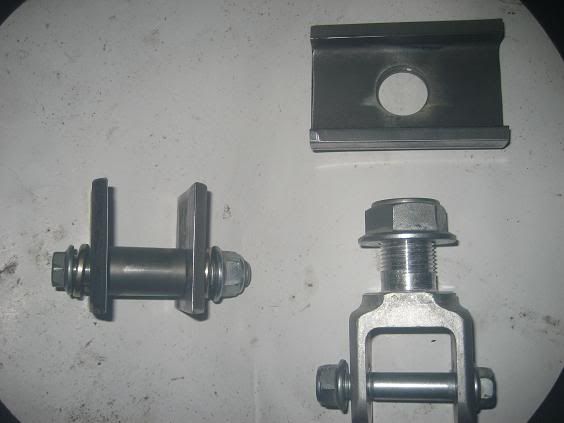

I finished the mounting brackets for the mono-shock but im still working on the spacers for the swingarm axle...

XS1100 Chain Conversion XS1100041-1
Back to top Go down
motohorseman
Admin
motohorseman

Posts : 353
Join date : 2011-02-27

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeMon May 09, 2011 6:24 am

Those parts look awefully clean to be going on your bike! :D

Seriously, great stuff, keep it coming!
Back to top Go down
Hank the Crank



Posts : 16
Join date : 2011-03-05

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeTue May 10, 2011 3:50 pm

Great pics.......saw a swingarm similar to that one you have....on a FXR. The triangulation was down...waited around for the owner to show up...didn't show, and have no idea how well it worked in his application.
One pic of yours shows Huey, Dewey, and Louie with no rags shoved down their collective throats......good project, thanks....Hank
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeWed May 11, 2011 11:40 pm

ujm wrote:
Those parts look awefully clean to be going on your bike! :D

Seriously, great stuff, keep it coming!

Give it time Steve, they'll be dirty in no time!!! Wink
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeWed May 11, 2011 11:41 pm

Hank the Crank wrote:
Great pics.......saw a swingarm similar to that one you have....on a FXR. The triangulation was down...waited around for the owner to show up...didn't show, and have no idea how well it worked in his application.
One pic of yours shows Huey, Dewey, and Louie with no rags shoved down their collective throats......good project, thanks....Hank

Thanks Hank!!!
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeWed May 11, 2011 11:46 pm

Still not finished with the swingarm axle spacers yet but i did tack up the mono shock...

XS1100 Chain Conversion XS1100045

XS1100 Chain Conversion XS1100052-1

XS1100 Chain Conversion XS1100053

And here she is off the center stand, im gonna have to make shorter dog bones to raise her up a bit but i need to wait til i have the front forks to do that...

XS1100 Chain Conversion XS1100055

XS1100 Chain Conversion XS1100059
Back to top Go down
motohorseman
Admin
motohorseman

Posts : 353
Join date : 2011-02-27

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu May 12, 2011 5:46 am

Wow, that is coming along nicely!!!!!!
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Sep 08, 2011 7:33 am

OK guys, i finally got some work done on the yamaha but i need to upload the pics. The only problem is i ran out of time so i'll do it tonight. But i can at least tell you what i've done...

Installed:
Rear, sprocket, rotor, cushdrive, tire and caliper
Front, sprocket, forks, wheel, rotors, tire, upper tree mod and handle bars
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Sep 08, 2011 8:54 pm

OK here is the upper clamp from a 2001 GSXR

XS1100 Chain Conversion IMG_0060

XS1100 Chain Conversion IMG_0059

Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Sep 08, 2011 8:57 pm

Full view of the forks...

XS1100 Chain Conversion IMG_0042


XS1100 Chain Conversion IMG_0041


XS1100 Chain Conversion IMG_0040
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Sep 08, 2011 9:01 pm

View of the front sprocket, rear sprocket and chain...

XS1100 Chain Conversion IMG_0024


XS1100 Chain Conversion IMG_0026


XS1100 Chain Conversion IMG_0025
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Sep 08, 2011 9:05 pm

I took this GS550 upper and milled it out...

XS1100 Chain Conversion IMG_0064


To make these...

XS1100 Chain Conversion IMG_0066


And mount them to the GSXR upper...

XS1100 Chain Conversion IMG_0070


XS1100 Chain Conversion IMG_0073


XS1100 Chain Conversion IMG_0071
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Sep 08, 2011 9:15 pm

To mount the handlebars...

XS1100 Chain Conversion IMG_0076


XS1100 Chain Conversion IMG_0077


XS1100 Chain Conversion IMG_0078


XS1100 Chain Conversion IMG_0079
Back to top Go down
Smoke-Dog

Smoke-Dog

Posts : 78
Join date : 2011-02-28
Age : 45
Location : Taylorsville, Ky.

XS1100 Chain Conversion Empty
PostSubject: Re: XS1100 Chain Conversion   XS1100 Chain Conversion I_icon_minitimeThu Sep 08, 2011 9:22 pm

And here she is with the tank...

XS1100 Chain Conversion IMG_0097


XS1100 Chain Conversion IMG_0096


XS1100 Chain Conversion IMG_0084
Back to top Go down
